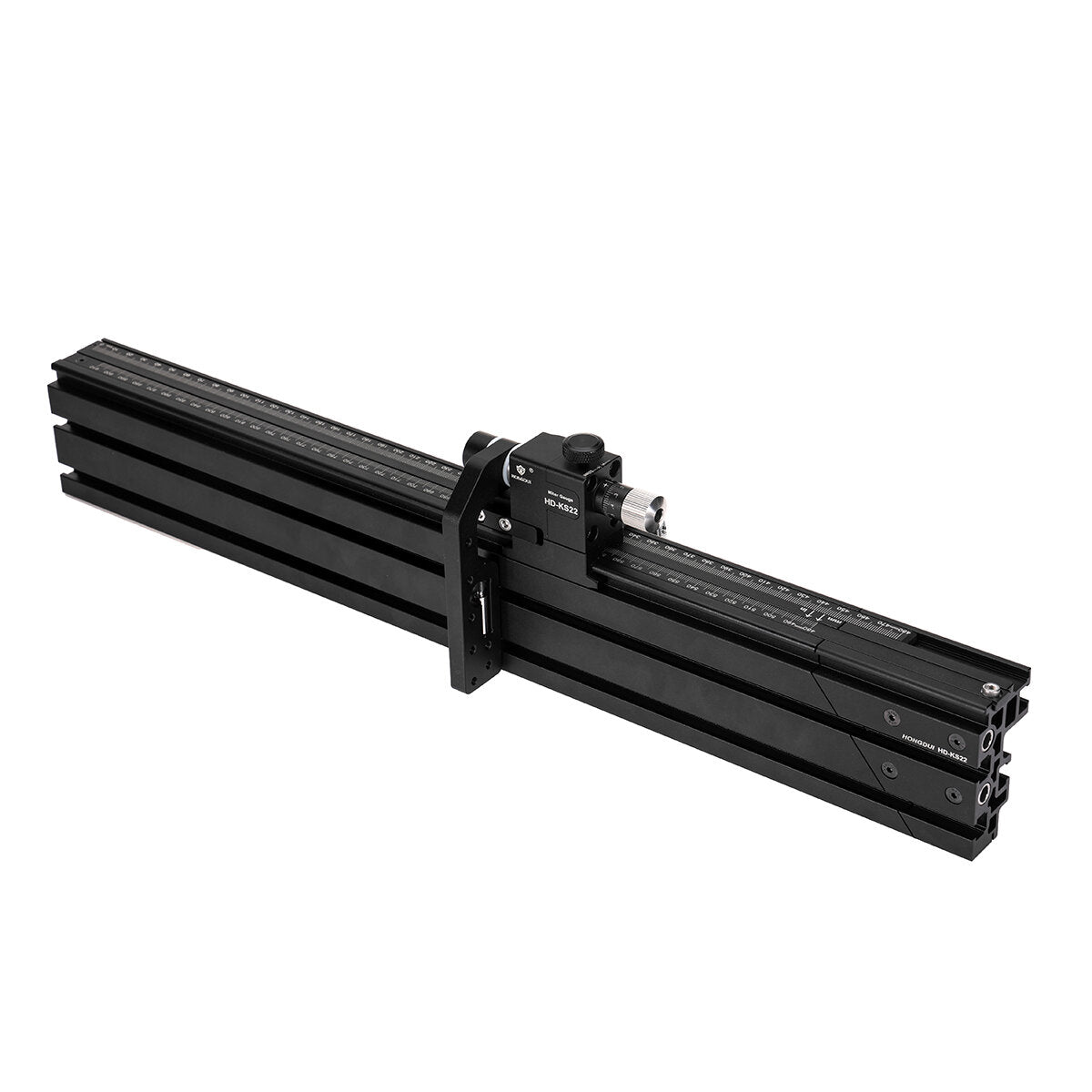

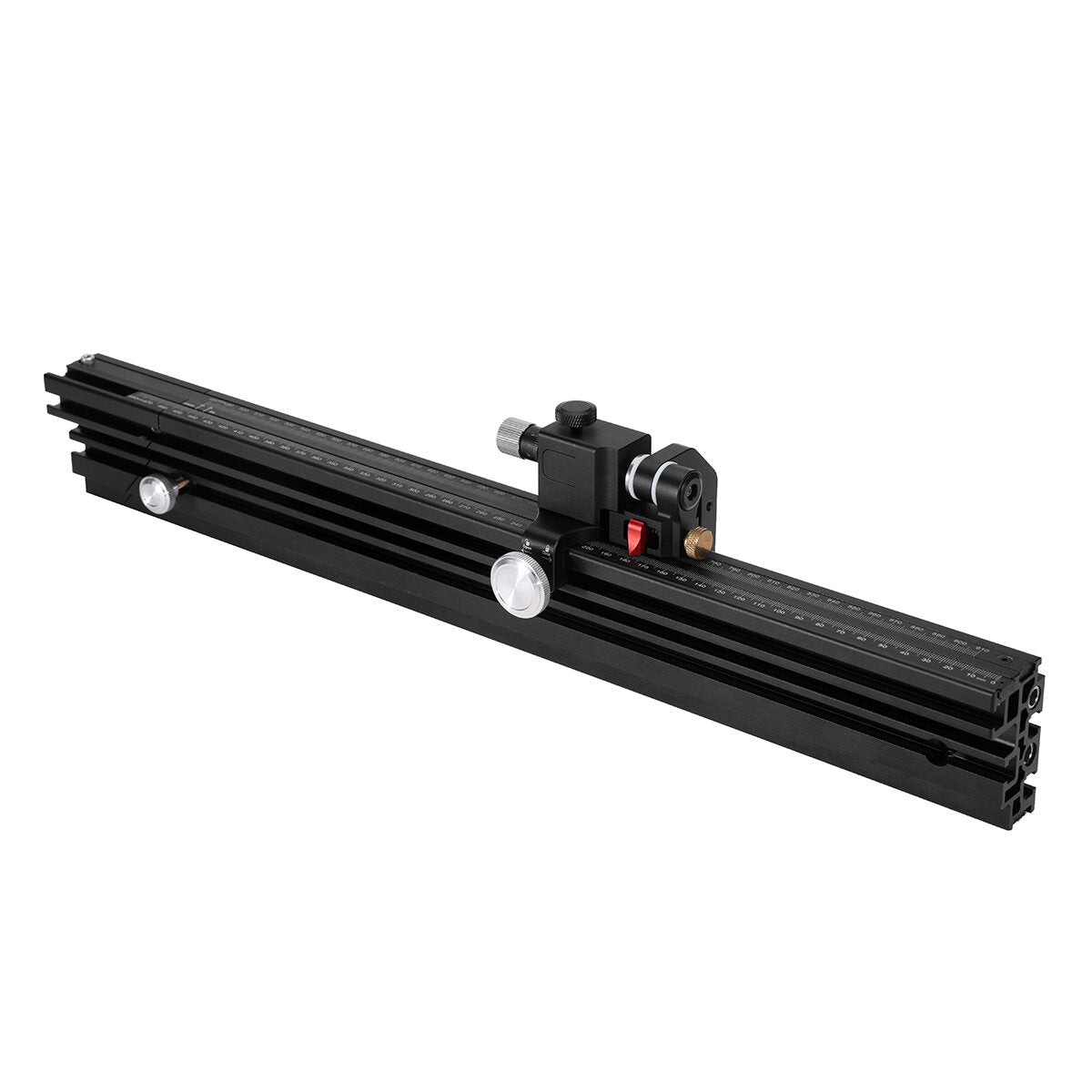

Aluminum Miter Gauge Fence Extended Support for Woodworking Miter Gauge Table Saw Router Table

Features:
- Extended 910mm: The effective reference data is 480mm without extension, and the reference data after extension is 910mm. The total length of the backer is 540mm.
- High Precision Fine Turning: High Precision Fine Turning, with a minimum adjustment accuracy of 0.002mm.

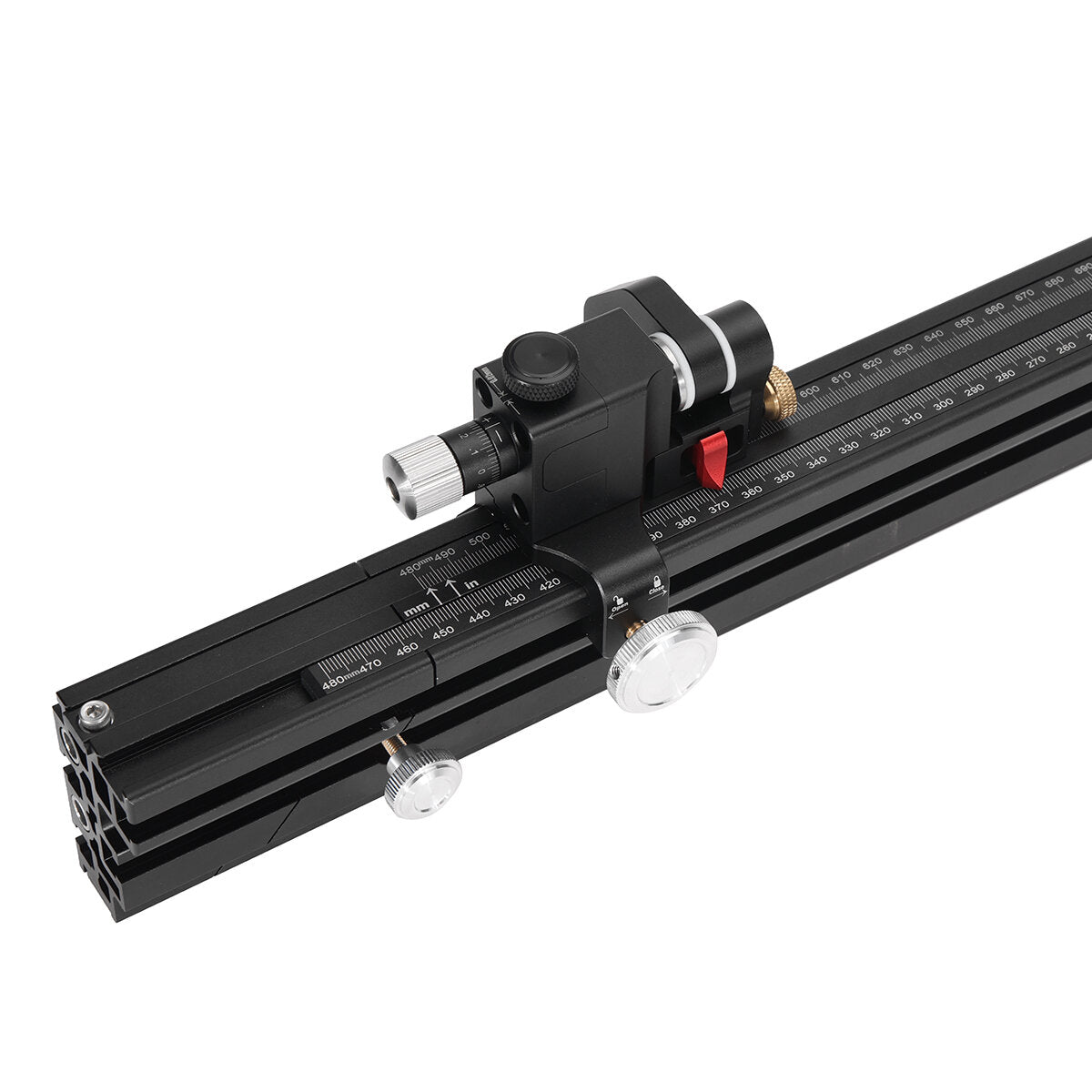

- Metric(mm) and imperial(inch) Scale: Double-sided scale, free switching. Can be cut without measuring and drawing lines.

Instruction:
1. Inspect to examine or check for defects or problems.

2. Right angle horizontal and safety clearance: The requirement for a horizontal right angle and a minimum safe distance between moving parts and surrounding areas.

3. Start zero setting:The process of setting the initial position or reference point for the machine or tool.

4. Positioning the extension crosscut fence:The process of aligning and securing the extension crosscut fence to the main fence.

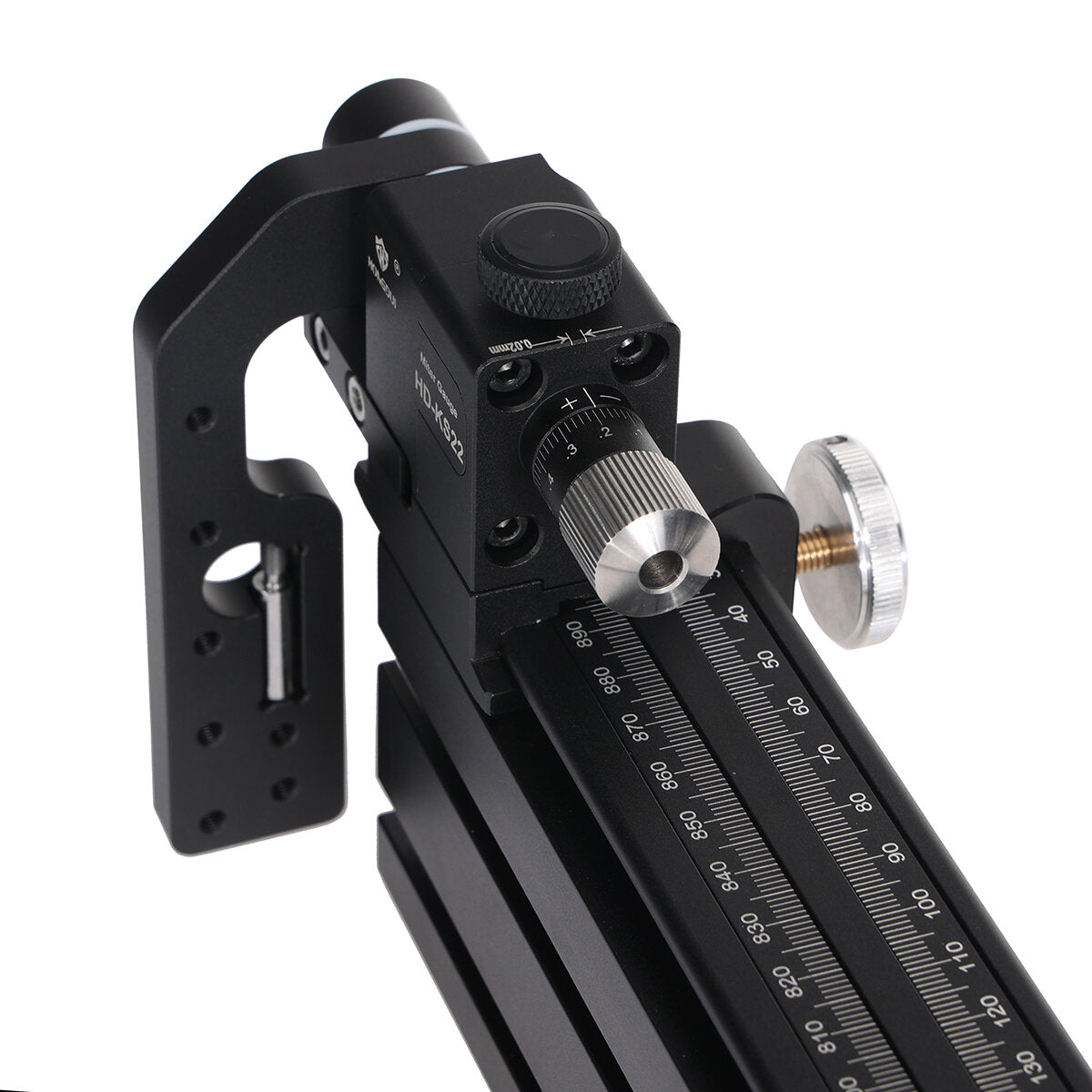

5. Fine adjustment knob:A control knob used for making precise adjustments to the machine or tool.

6. Use of positioning pins:The method of using pins or alignment features to ensure accurate and consistent cuts.

7. Making a Sub Fence:Users can make a wooden sub fence as required.
Compatible with Hongdui HD-TB01 Miter Gauge

Specifications:
Product name: Miter Gauge Fence
Material: Aluminum + Plastic
Length range: 0-910 mm
Angle range: 0-70 degrees

Package included:
1 x Block
1 x Tenon
