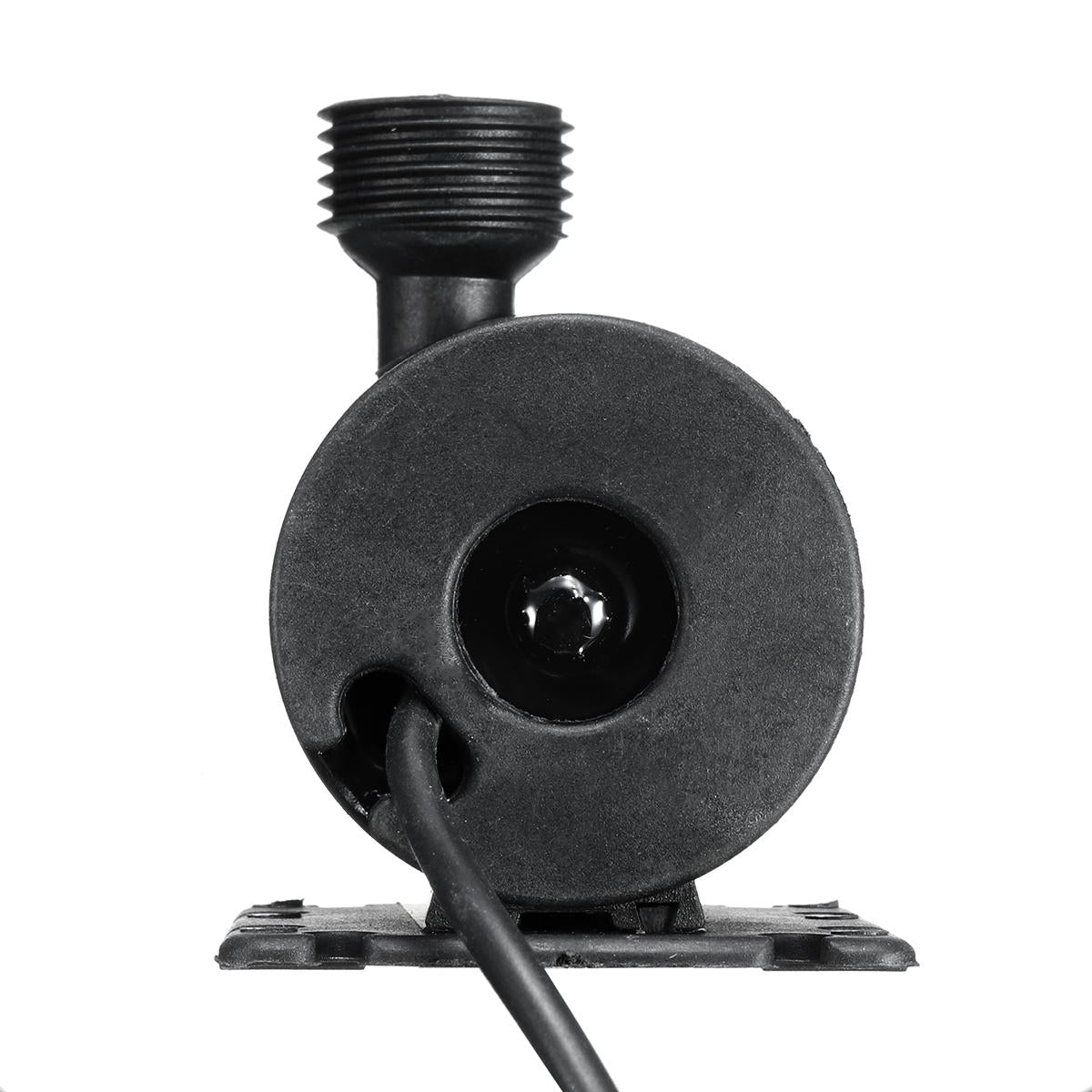

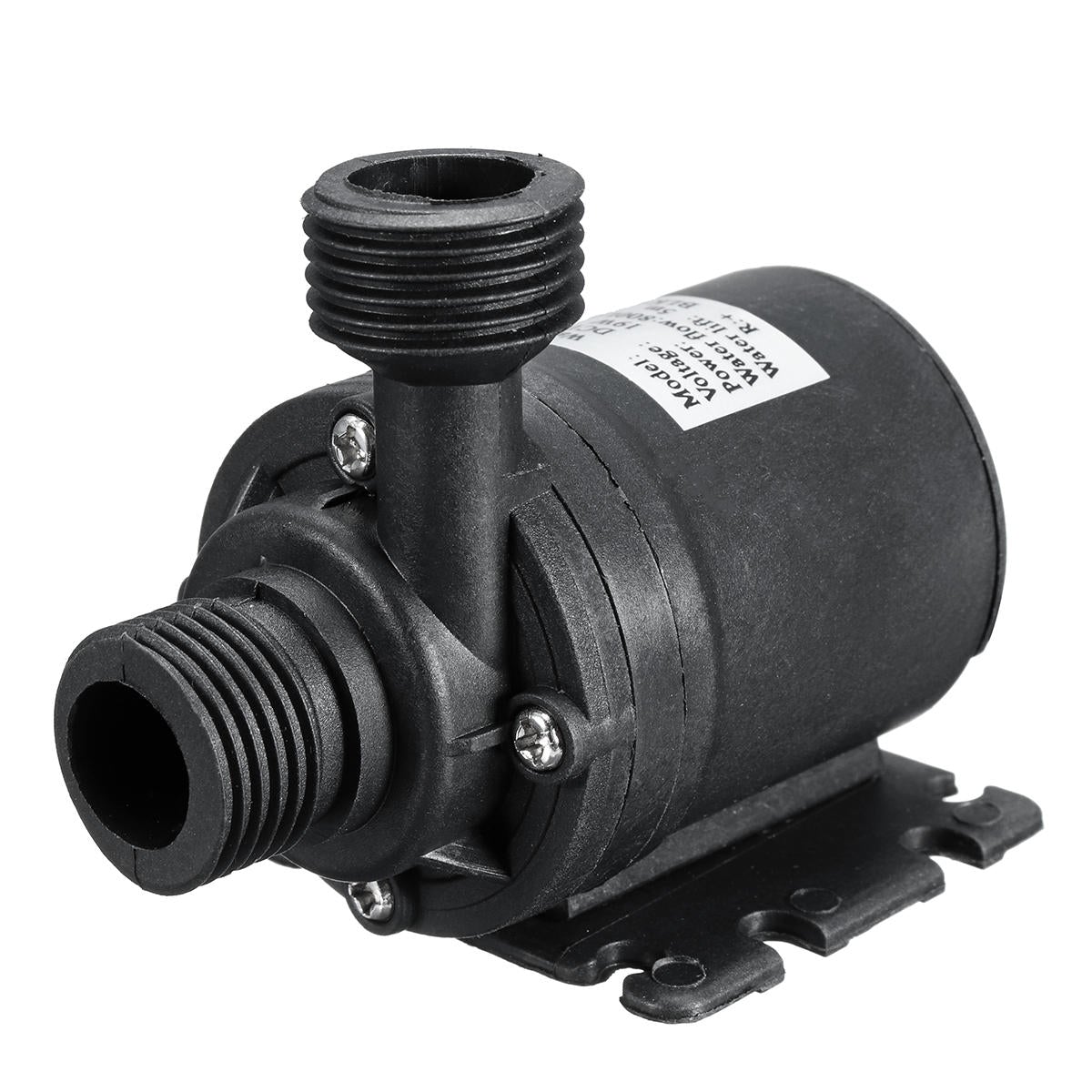

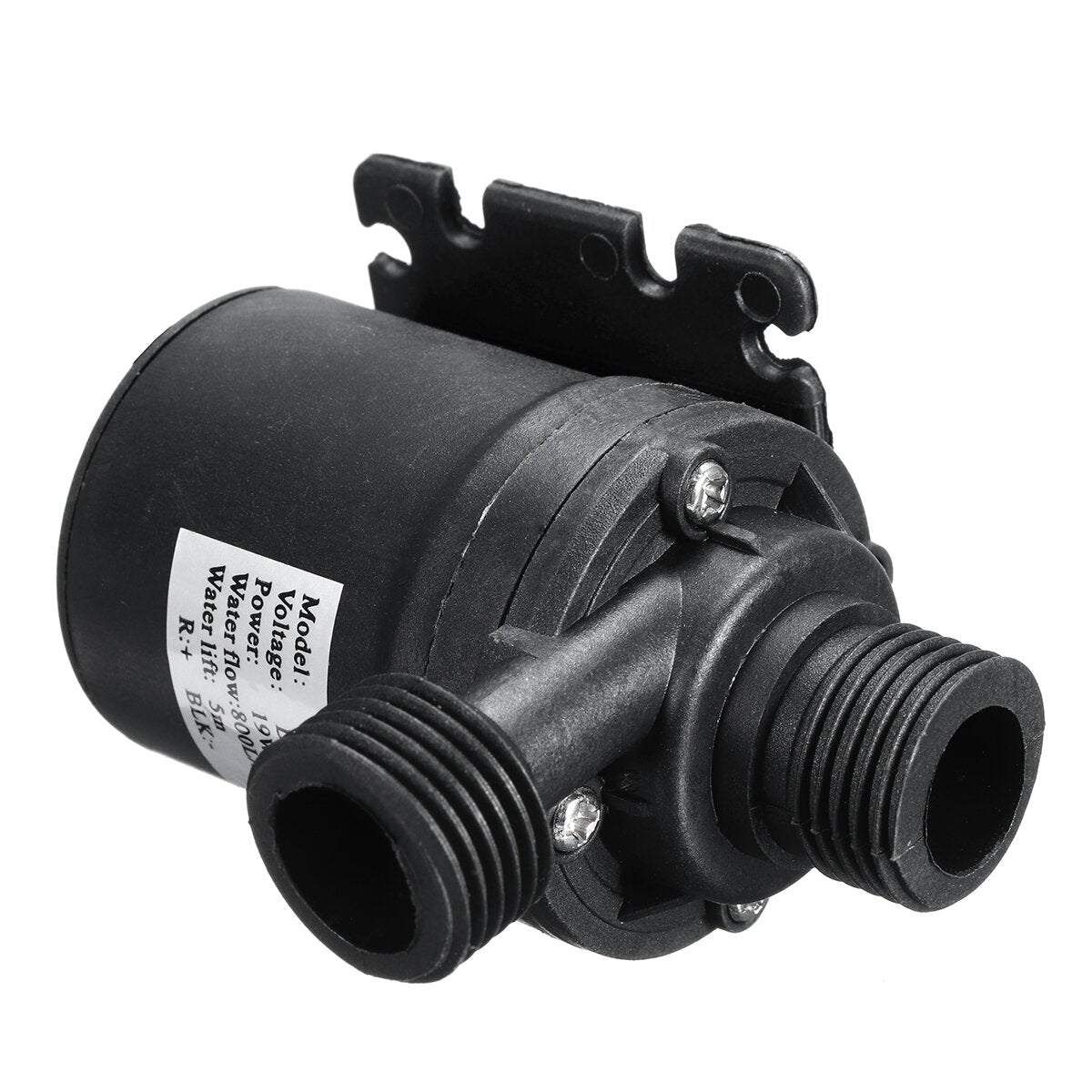

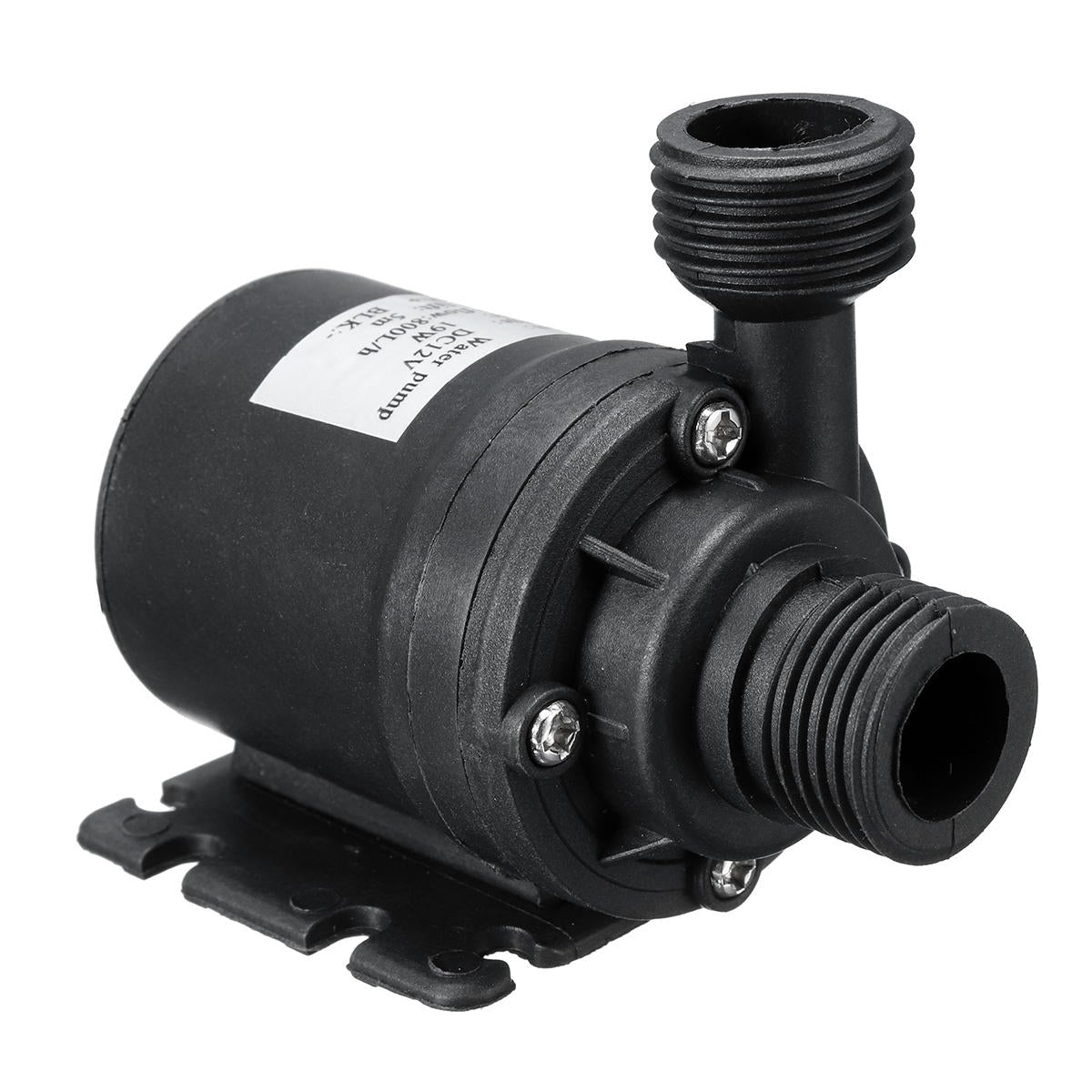

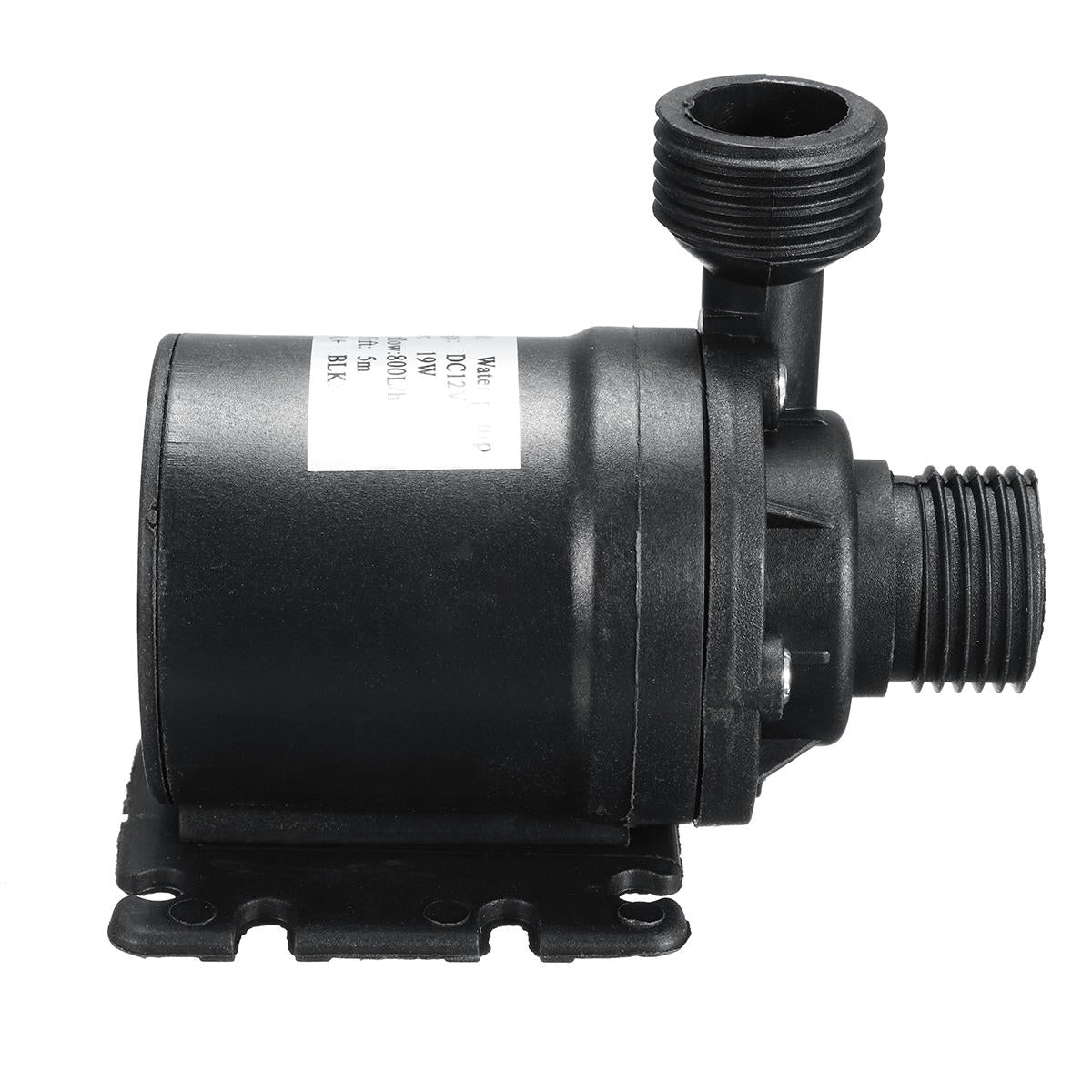

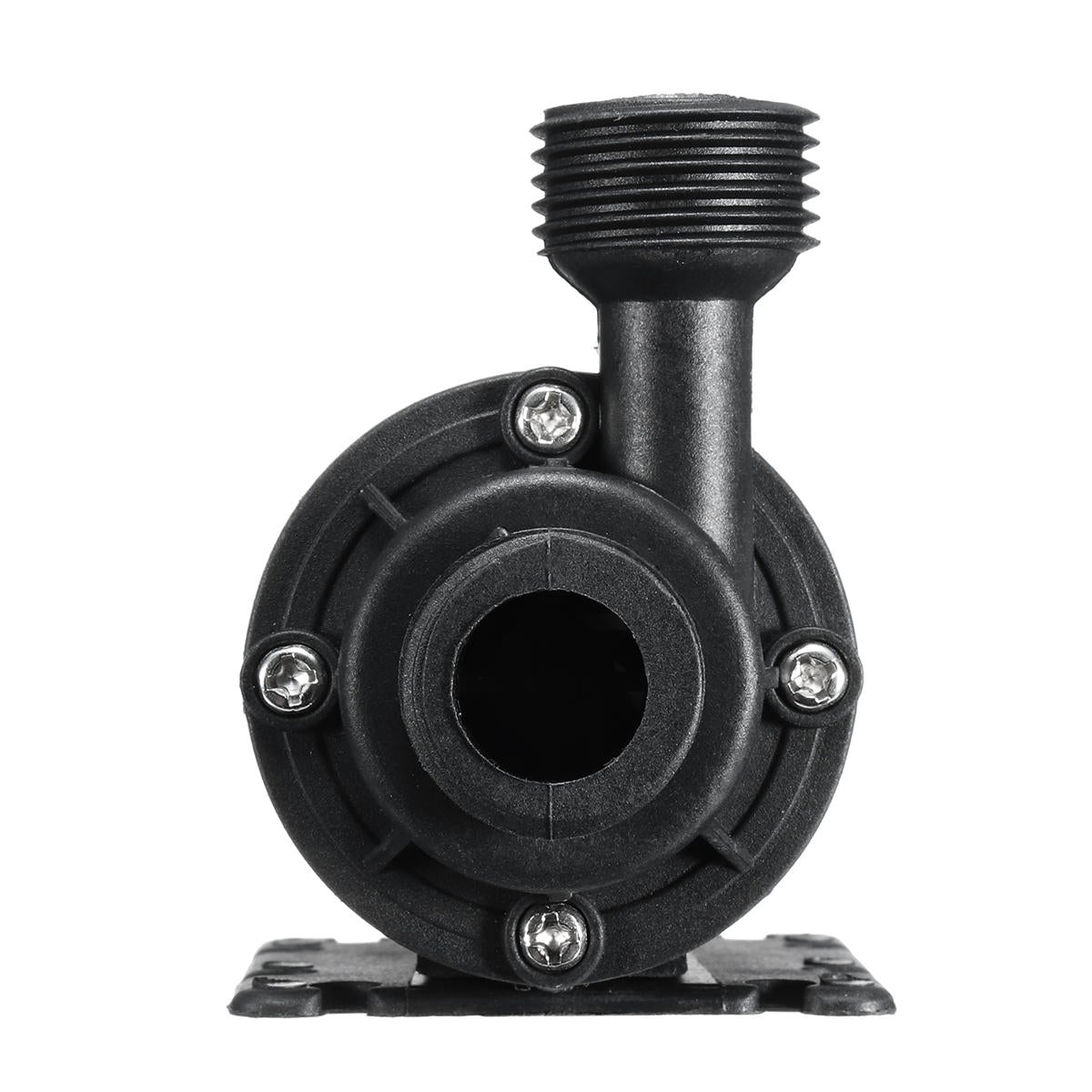

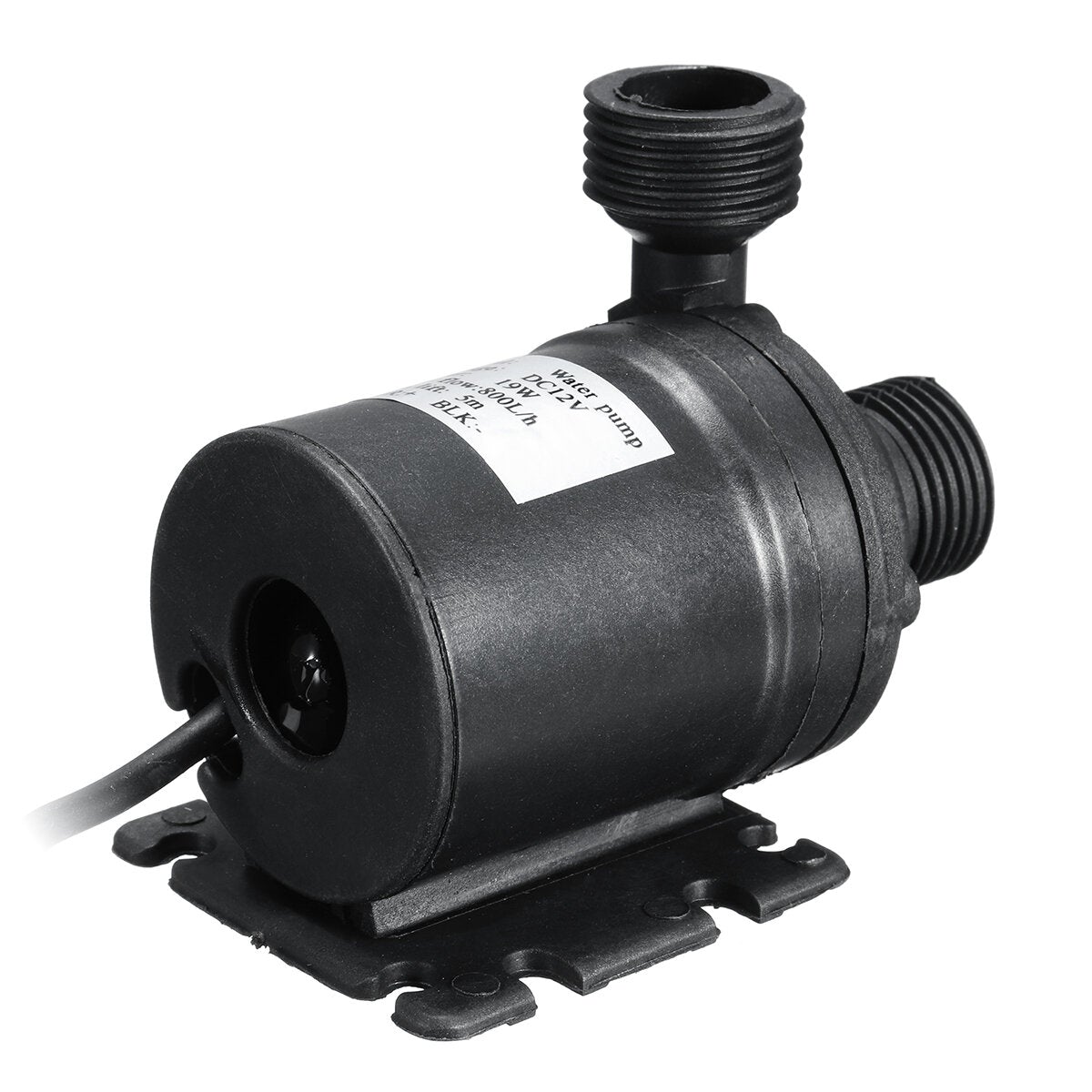

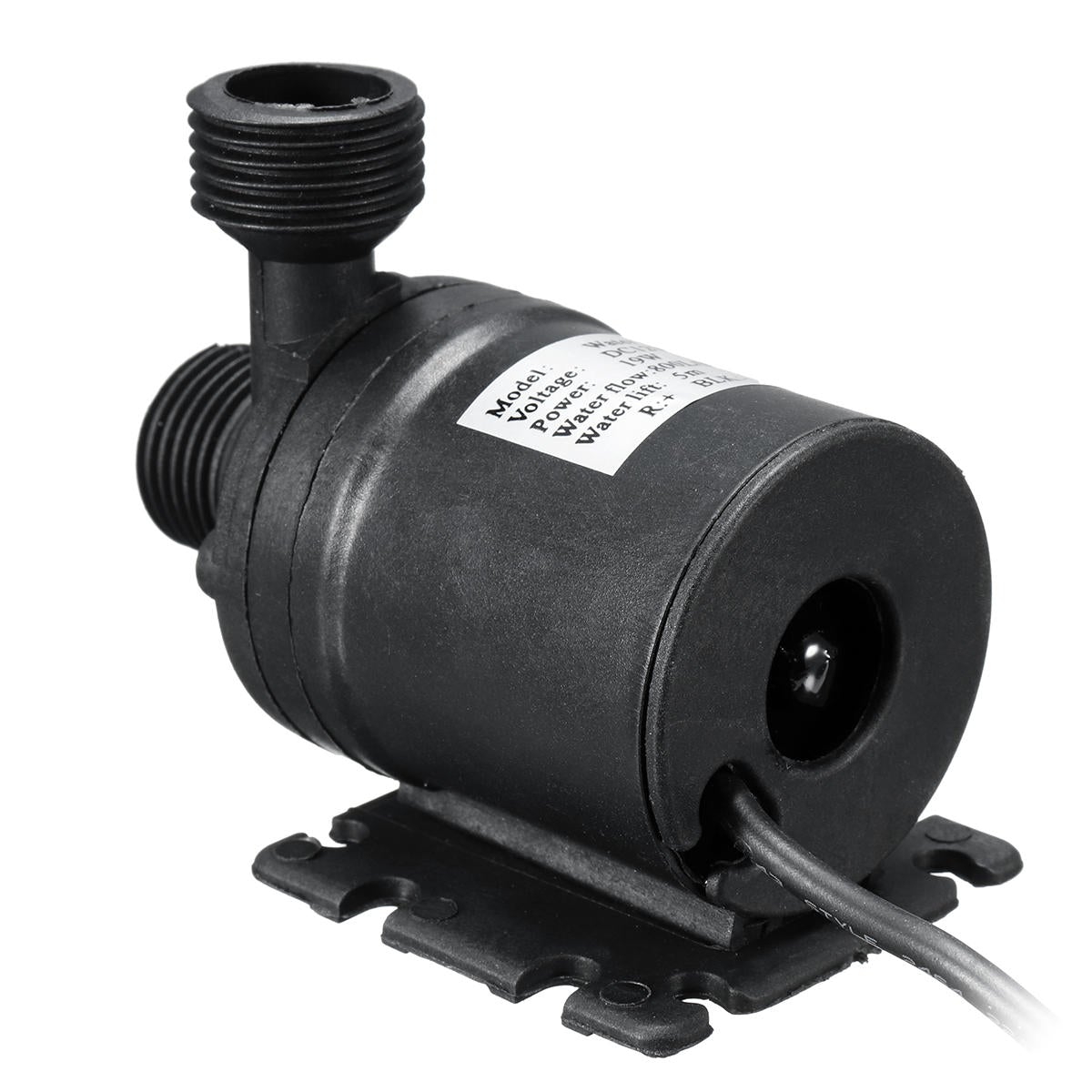

DC 12V/24V 800L/H Submersible Water Pump 5M Solar Brushless Motor Water Circulation Pump

Specification:
Materials:ABS;
Inlet/Outlet:4mm Threaded port;
Voltage&Power:DC 12V 19W or DC 24V 24W (optional);
Flow Rate:800L/h(m3/h);
Max Water lift:5 metre;
Sizes:About 7.7cm(L) x 4.2cm(W) x 6.5cm(H);
Working environment temperature:1-60℃;
Noise:<40 db (water) under operation;
Drive mode:electromagnetic;
Conveying medium:hot water pump;
Pump shaft position:horizontal;
Impeller structure:open impeller;
Impeller suction method:single suction type.

Features:
- Uses advanced electronic components and high-quality wear-resistant shaft.
- Long working life, continuous power-on working time of more than 10,000 hours.
- It is smooth operation, high efficiency, good performance.
- Small volume, low noise, safety and environmental protection.

Usage:
The water pump cable (red line is positive, do not take the wrong) received a suitable power supply (the battery can be a battery, it can be a power converter), and then a good water pipe, then pump into the water, Can be used normally.
(Note: The DC brushless pump is a centrifugal pump, the pump water flow with the increase of the head decreases. No diving without self-priming function, prohibit no water free.)

Common Troubleshooting:
1. The pump flow is reduced or no water. (The pump chamber can be disassembled for cleaning).
2. Tland use when the pump does not run water. (There is air in the pump or in the pipeline.)

Note:
1.Do not take the wrong pump positive and negative.
2.Prohibit not through the power converter will be connected directly to the 220V power supply pump.
3.Is strictly prohibited for strong acidity, alkali and other damage to the pump medium.
4.The pump is suitable for medium temperature 1 ℃ -60 ℃.

Package included:
1 x Brushless Motor Water Pump
